D-Link GO-SW-5GE 5-Port Gigabit Unmanaged Metal Desktop Switch Item # 727787

 |

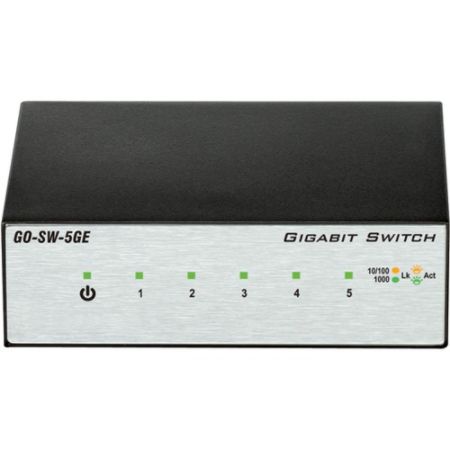

D-Link GO-SW-5GE 5-Port Gigabit Unmanaged Metal Desktop Switch
$ 26 .59 / each $26.59
Add a Protection Plan (optional)  Learn More
Includes Coverage For Accidental Drops & Spills
In Stock
Estimated delivery 3-7 business days

    Description

    Expand your wired home network with the D-Link 5-port unmanaged Gigabit desktop switch (GO-SW-5G). By connecting the GO-SW-5G to your router, you can add up to four more computers to your home network with Fast Ethernet connectivity. Add devices like your gaming console, printer, print server, Network-Attached Storage (NAS) or network camera with a simple Ethernet cable.Features easy access auto sensing Gigabit front Ethernet ports with a LED indicator for each port to quickly distinguish link status and activity. The GO-SW-5G switch also supports auto MDI/MDIX crossover allowing each port to be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables to get you the maximum speed possible for each device connected to your network.

    Back To Top

    Product Details

    Item # 727787
    Manufacturer # QY4298
    Ethernet Technology Gigabit Ethernet
    power source AC Adapter
    Uplink Port
    Total Number of Network Ports 5
    height 1.1 in
    Number of Network (RJ-45) Ports 5
    Certifications & Standards FCC Class B; ICES-003 Class B; CE Class B; C-Tick Class B; VCCI Class B; cUL; CB; LVD; IEEE Standards:802.3; 802.3u; 802.3ab; 802.3; 802.3x; 802.1p; 802.3az
    PoE (RJ-45) Port No
    width 3.8 in
    Manageable No
    package contents 5-Port Gigabit Unmanaged Metal Desktop Switch; Power Adapter; Quick Install Guide
    depth 3.1 in
    Product Name 5-Port Gigabit Unmanaged Metal Desktop Switch
    Twisted Pair Cable Standard Category 5e
    manufacturer D-Link Systems, Inc
    Redundant Power Supply No
    weight 10.08 oz
    brand name D-Link
    USB No
    Port/Expansion Slot Details 5 x Gigabit Ethernet Network
    Input Voltage 5 V DC
    Media Type Supported Twisted Pair
    Management Port No
    Layer Supported 2
    form factor Desktop
    MTBF 1261786.90 Hour
    Token Ring Port No
    Bypass No
    Modular No
    warranty length 3-year limited
    model name GO-SW-5GE
    Network Technology 10/100/1000Base-T
    LRE Port No
    Stack Port No
    Show More ▾
    Back To Top

      Customer Reviews

      Back To Top

      From the Manufacturer|Powered by Webcollage

      Thank You Is the information in this section helpful? Yes / No

      Overview

      5-Port Gigabit Unmanaged Metal Desktop Switch

      GO-SW-5GE

      Connect all of your Devices for Fast File Transfers and Smooth Media Streaming



      The GO-SW-5GE 5-Port Gigabit Unmanaged Metal Desktop Switch is part of D-Link’s new series of SOHO devices that make use of D-Link’s Green Technology, providing energy savings, reduced heat, and a longer product life without sacrificing performance or functionality. An energy-efficient power adapter (EnergyStar Level V qualified), minimizes use of harmful substances (RoHS compliant), and recyclable packaging make this switch truly environmentally friendly.





      Images

      {"images":[{"assetWrapper":"image-gallery","runtimeSrc":{"height":383,"width":617,"src":"/_cp/products/1363371805463/tab-60fe2a54-8112-48ff-b774-dd6d1d8563e6/c12924e9-1d00-4975-afb9-1497b48320c6.jpg.web.jpg"},"caption":"Front","isAdaCompliant":true,"src":{"height":383,"width":617,"src":"/_cp/products/1363371805463/tab-60fe2a54-8112-48ff-b774-dd6d1d8563e6/c12924e9-1d00-4975-afb9-1497b48320c6.jpg"},"sources":[{"height":383,"width":617,"src":"/_cp/products/1363371805463/tab-60fe2a54-8112-48ff-b774-dd6d1d8563e6/c12924e9-1d00-4975-afb9-1497b48320c6.jpg.w960.jpg","profile":"W960"},{"height":297,"width":480,"src":"/_cp/products/1363371805463/tab-60fe2a54-8112-48ff-b774-dd6d1d8563e6/c12924e9-1d00-4975-afb9-1497b48320c6.jpg.w480.jpg","profile":"W480"},{"height":148,"width":240,"src":"/_cp/products/1363371805463/tab-60fe2a54-8112-48ff-b774-dd6d1d8563e6/c12924e9-1d00-4975-afb9-1497b48320c6.jpg.w240.jpg","profile":"W240"}]},{"assetWrapper":"image-gallery","runtimeSrc":{"height":408,"width":618,"src":"/_cp/products/1363371805463/tab-60fe2a54-8112-48ff-b774-dd6d1d8563e6/1820bed1-3525-4a12-87c8-301c4f2b5c1d.jpg.web.jpg"},"caption":"Side","isAdaCompliant":true,"src":{"height":408,"width":618,"src":"/_cp/products/1363371805463/tab-60fe2a54-8112-48ff-b774-dd6d1d8563e6/1820bed1-3525-4a12-87c8-301c4f2b5c1d.jpg"},"sources":[{"height":408,"width":618,"src":"/_cp/products/1363371805463/tab-60fe2a54-8112-48ff-b774-dd6d1d8563e6/1820bed1-3525-4a12-87c8-301c4f2b5c1d.jpg.w960.jpg","profile":"W960"},{"height":316,"width":480,"src":"/_cp/products/1363371805463/tab-60fe2a54-8112-48ff-b774-dd6d1d8563e6/1820bed1-3525-4a12-87c8-301c4f2b5c1d.jpg.w480.jpg","profile":"W480"},{"height":158,"width":240,"src":"/_cp/products/1363371805463/tab-60fe2a54-8112-48ff-b774-dd6d1d8563e6/1820bed1-3525-4a12-87c8-301c4f2b5c1d.jpg.w240.jpg","profile":"W240"}]},{"assetWrapper":"image-gallery","runtimeSrc":{"height":226,"width":618,"src":"/_cp/products/1363371805463/tab-60fe2a54-8112-48ff-b774-dd6d1d8563e6/675564cd-256e-42ab-833c-d3f56c7b8ed2.jpg.web.jpg"},"caption":"Back","isAdaCompliant":true,"src":{"height":226,"width":618,"src":"/_cp/products/1363371805463/tab-60fe2a54-8112-48ff-b774-dd6d1d8563e6/675564cd-256e-42ab-833c-d3f56c7b8ed2.jpg"},"sources":[{"height":226,"width":618,"src":"/_cp/products/1363371805463/tab-60fe2a54-8112-48ff-b774-dd6d1d8563e6/675564cd-256e-42ab-833c-d3f56c7b8ed2.jpg.w960.jpg","profile":"W960"},{"height":175,"width":480,"src":"/_cp/products/1363371805463/tab-60fe2a54-8112-48ff-b774-dd6d1d8563e6/675564cd-256e-42ab-833c-d3f56c7b8ed2.jpg.w480.jpg","profile":"W480"},{"height":87,"width":240,"src":"/_cp/products/1363371805463/tab-60fe2a54-8112-48ff-b774-dd6d1d8563e6/675564cd-256e-42ab-833c-d3f56c7b8ed2.jpg.w240.jpg","profile":"W240"}]}]}

      Features

      • Gigabit Speed

        Five Gigabit Ethernet ports for superior device connectivity

      • Conserves Energy

        Providing energy savings, reduced heat and longer product life

      • Gigabit Connection for Home and SOHO

        The GO-SW-5GE offers an economical way for SOHO and small to medium businesses (SMB) to benefit from the increased bandwidth of Gigabit Ethernet. It provides five Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity.

      • Think Green

        The GO-SW-5GE 5-Port Gigabit Unmanaged Metal Desktop Switch is part of D-Link’s new series of SOHO devices that make use of D-Link’s Green Technology, providing energy savings, reduced heat, and a longer product life without sacrificing performance or functionality. An energy-efficient power adapter (EnergyStar Level V qualified), minimized use of harmful substances (RoHS compliant), and recyclable packaging make this switch truly environmentally friendly.  The GO-SW-5GE also helps you conserve energy automatically. The switch saves substantial amounts of power by cutting power usage for unused ports or ports connected to computers that have been shut down.

      Specifications



      Technical Specifications

      Switching Fabric• 10Gbps
      Standards



      • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)

      • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-paircopper)

      • IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twistedpaircopper)

      • ANSI/IEEE 802.3 NWay auto-negotiation

      • IEEE 802.3x Flow Control

      • IEEE 802.1p QoS

      • IEEE 802.3az Energy-Efficient Ethernet (EEE)

      Protocol• CSMA/CD
      Data Transfer Rates



      • Ethernet:- 10 Mbps (half duplex), 20 Mbps (full duplex)

      • Fast Ethernet:- 100 Mbps (half duplex), 200 Mbps (full duplex)

      • Gigabit Ethernet: -2000 Mbps (full duplex)

      Topology• Star
      Network Cables



      • 10BASE-T:

      - UTP CAT 3, 4, 5/5e (100 m max.)

      - EIA/TIA-586 100-ohm STP (100 m max.)

      • 100BASE-TX, 1000BASE-T:

      - UTP CAT 5/5e (100 m max.)

      - EIA/TIA-568 100-ohm STP (100 m max.)

      Media Interface Exchange• Auto MDI/MDIX adjustment for all ports
      LED Indicators

      • Per port: Link/Activity/Speed

      • Per device: Power

      Transmission Method• Store-and-forward
      MAC Address Table• 2K
      MAC Address Learning• Automatic update
      Packet Filtering/Forwarding Rates



      		• Ethernet: 14,880 pps per port
      • Fast Ethernet: 148,800 pps per port
      • Gigabit Ethernet: 1,488,000 pps per port
      RAM Buffer• 128KB per device
      Jumbo Frames• 9,216 Bytes

      General Specifications

      DC Input• External 5 V/1 A Level “V” Power Adapter
      Power Consumption

      • Power On (Standby):

      DC input: 0.45 watts

      AC input: 1.4 watts

      • Maximum:

      DC input: 2.37 watts

      AC input: 3.09 watts

      MTBF• 1,261,786.896 hours
      Operating Temperature• 32 to 130 ˚F (30 to 50 ˚C)
      Storage Temperature• -14 to 158 ˚F (10 to 70 ˚C)
      Operating Humidity• 10% to 90% RH non-condensing
      Storage Humidity• 5% to 90% RH non-condensing
      Dimensions• 3.54x 2.83 x 1.06 inches (90 x 72 x 27 mm)
      Weight• 10.08 ounces (286 grams)
      Certifications



      • FCC Class B

      • ICES-003 Class B

      • CE Class B

      • C-Tick Class B

      • VCCI Class B

      • cUL

      • CB

      • LVD

      Warranty

      Warranty• 3-Year Limited1

      1 3 Year Limited Warranty available only in the USA and Canada. All references to speed are for comparison purposes only. Product specifications, size and shape are subject to change without notice, and actual product appearance may differ from
      that depicted herein.

      Comparison

      GO-SW-5E GO-SW-8E GO-SW-5G GO-SW-8G GO-SW-5GE GO-SW-8GE GO-SW-16GE GO-SW-24GE
      Features
      Port Type 10/100 10/100 Gigabit Gigabit Gigabit Gigabit Gigabit Gigabit
      Number of Ports 5 8 5 8 5 8 16 24
      Form Factor Desktop Desktop Desktop Desktop Desktop Desktop Desktop / Rackmount Desktop / Rackmount
      Housing Plastic Plastic Plastic Plastic Metal Metal Metal Metal
      Fan Fanless Fanless Fanless Fanless Fanless Fanless Fanless Fanless
      MAC Table 2K 2K 2K 8K 2K 8K 8K 8K
      Switching Capacity 1 Gbps 1.6 Gbps 10 Gbps 16 Gbps 10 Gbps 16 Gbps 32Gbps 48Gbps
      QoS (802.1p)
      No
      No
      No
      No
      Yes
      Yes
      Yes
      Yes
      Jumbo Frame
      No
      No
      		9,216 Bytes 9,216 Bytes 9,216 Bytes 9,216 Bytes 9,216 Bytes 9,600 Bytes
      IEEE 802.3az (EEE)
      Yes
      Yes
      Yes
      Yes
      Yes
      Yes
      Yes
      Yes
      Power External External External External External External Internal Internal
      Warranty 3-Year Limited 3-Year Limited 3-Year Limited 3-Year Limited 3-Year Limited 3-Year Limited 5-Year Limited 5-Year Limited
